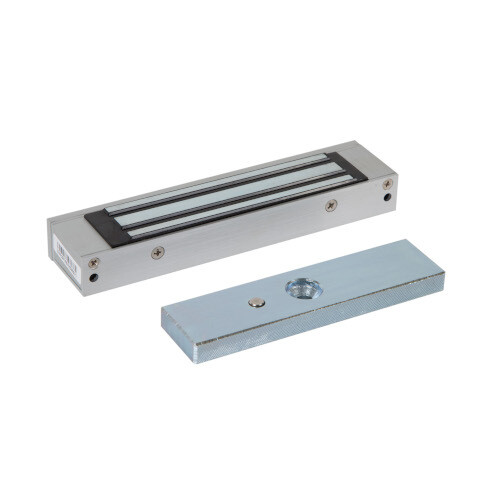

Micro Magnetic Lock

Features

• Slim line micro magnet
• Clean and compact design
• No residual magnetism
• Fire Rated BSEN1634-1-2014
• 30, 60, 90 and 120 min timber door-sets

Specifications

• Aluminium housing
• 12VDC 300mA
• 180kg(300lb) holding force
• Built in surge protection
• Surface mount
• Fail safe operation (power to lock)
• +/- 15% voltage tolerance
• -10° to +50° operating temperature
• Push off release on armature

Dimensions

• 170 x 39 x 21 mm (Maglock)
• 130 x 31 x 11 mm (Armature)
