PB-20TE

Product Details

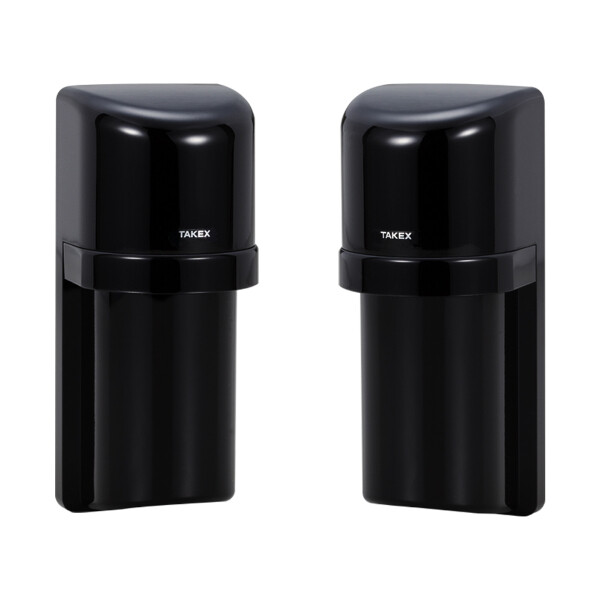

Twin Photoelectric Beams

The PB-20TE twin photoelectric beams are designed to meet the highest standards of quality and reliability for photoelectric beam intrusion detection. Unique twin beams are synchronised to work together to reinforce range and stability in severe weather conditions.

For distances up to 20m (66ft) outdoor / 60m (135ft) indoor.

Features

  • Choose from 4-Channels (selectable) for use in "stacked" or "in-line" systems without crosstalk
  • Synchronised Twin Beams for reliable detection
  • Double Modulated Beam type ensures unsurpassed immunity to direct and reflected sunlight and vehicle headlights
  • Multi-Meter Test Points to accurately monitor alignment voltage
  • Frost Resistant Cover minimises nuisance alarms in harsh weather
  • Automatic Gain Control for maximum stability

Specifications

  • Product type: Photoelectric Beam Sensor
  • Detection system: Simultaneous breaking of 2 beams
  • Infrared beam: LED pulsed beam, Double modulation
  • Protection distance:
    • Outdoor 20m (66ft) or less
    • Indoor 40m (135ft) or less
  • Beam arrival distance (max.):
    • Outdoor 200m (660ft) or less
    • Indoor 200m (660ft) or less
  • Response time: 50msec. to 700msec. (Variable at pot)
  • Supply voltage: 10V to 30VDC (Non-polarity)
  • Current consumption: 55mA or less
  • Alarm output:
    • Dry contact relay output form C
    • Contact action: Interruption time + delay time
    • Contact capacity : 30V AC/DC, 0.5A or less
  • Tamper output:
    • Dry contact relay 1b N/C
    • Action: Activated when cover is detached
    • Contact capacity : 30V AC/DC, 0.5A or less
  • Alarm LED:
    • Red LED (Receiver)
    • ON: when an alarm is initiated.
  • Attenuation LED:
    • Red LED (Receiver)
    • ON : when beam is attenuated
  • Functions
    • Beam frequency changeover (4ch.)
    • Monitor jack output
    • AGC circuit
    • Frost proof cover
  • Ambient temperature range: -25°C to +60°C (-13°F to +140°F)
  • Mounting positions: Indoor / Outdoor
  • Wiring: Terminals
  • Weight:
    • Transmitter : 380g (13.3oz)
    • Receiver : 400g (14oz)
  • Appearance: PC resin (wine red)
