Security & Safety Sensor

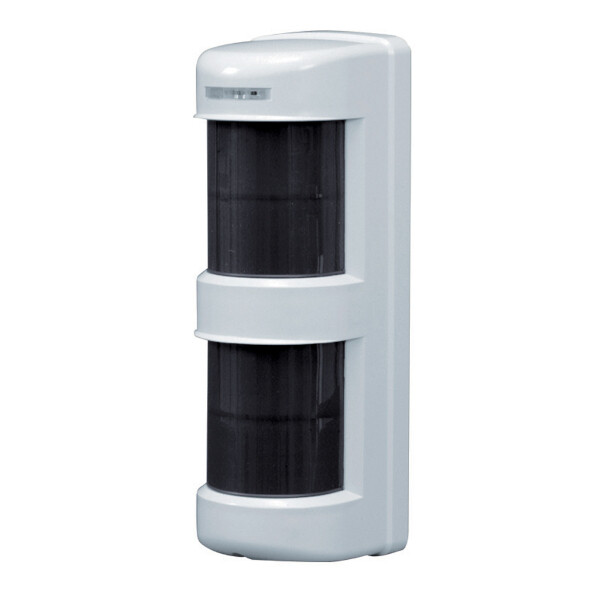

With its 4 x 12m PIR detectors giving up to 180 degrees of effectively pet immune coverage, the MS-12FE remains the professional choice for reliable, trouble-free outdoor motion detection. Incorporating key features such as day/night discrimination, variable timer alarm relay, NO/NC output, pulse count and sensitivity adjustments, there really is no need to look further.

Features

• 2x Dual-Zone sensor heads can resist detection of small animals
• Advanced Variable Multi-area Detection System
• Selectable NO/NC relay output with Timer Function
• Day/Night Sensing
• Adjustable Pulse Count & Sensitivity
• 0.8-1.2m Mounting Height

Specifications

• Detection system: Passive infrared
• Coverage:
• When horizontal detection Angle: 90°
• Detection distance: 12m (40ft)
• Horizontal zone: 7 zones
• Downward zone: 7 zones
• Coverage Adjustment:
• Horizontal : +/-90°
• Detection distance : 3 to 12m (10' to 40') (By adjusting vertical angle of downward zone)
• Supply voltage: 12V to 30VDC (Non-polarity)
• Current consumption: 40mA max
• Alarm output:
  • Dry contact relay output (NO/NC Selectable)
  • Contact capacity: 30V (AC/DC), 0.5A max. (resistance load)
  • Contact operation : detection time + off delay (approx. 2 sec. to 5 min.)
• Tamper output:
  • Dry contact relay output (NC)
  • Contact capacity : 30V (AC/DC), 0.5A max. (resistance load)
• Operation LED:
  • Red LED
  • Blinking at warming up (LED disabled)
  • Lighting at alarm (LED disabled)
• Pulse count settings: once / three times (with a switch)
• Sensitivity adjustment: Approx. 30% (L) - Approx. 170% (H) (By potentiometer)
• Detection mode: AND / OR selectable
• Connection: Terminals
• Ambient temperature range: -20°C to +50°C (-4°F to +122°F)
• Mounting position: Indoor / Outdoor
• Weight: 470g (16.5 oz)
• Appearance:
  • Body: AES resin
  • Lens: PE resin
