FC52P

Product Details

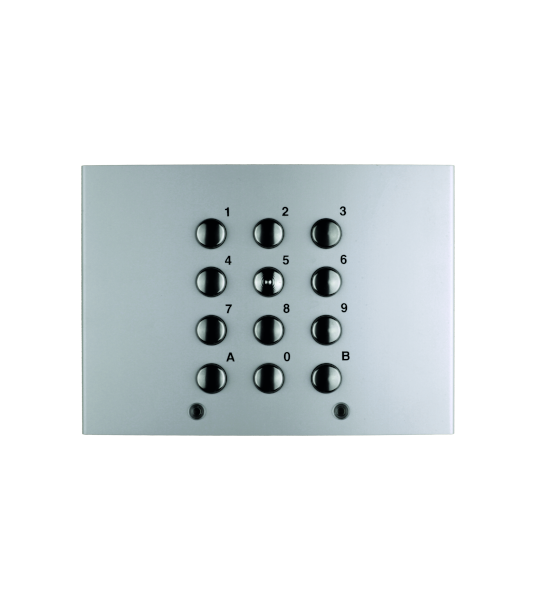

The FC52P is a stand alone keypad designed to to fit one module of the Mody range. Manufactured from brushed aluminium with stainless steel buttons and with 4 pin codes per relay, the FC52P is fully compatible with Mody accessories allowing surface or flush installation. This level of integration with Mody extends to the option of including the FC52P within a video or audio door station.



As an additional security feature, if an incorrect code is entered, the FC52P will not accept another code entry for 2 seconds, increasing to a maximum of 25 seconds each time an incorrect code is entered, discouraging repeated attempts to guess the correct code.



Two relays are provided which can be programmed in momentary or latched mode with variable time delays up to 99 seconds. Exit request available on relay 1.



Shown installed in a MD91 surface back box with integrated rain shelter.
