EB300

Product Details

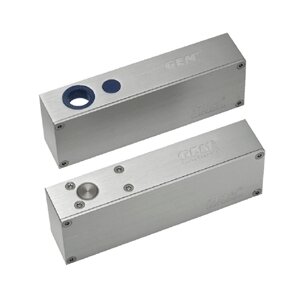

Solenoid Bolt (surface) 12VDC

The EB300 electric dropbolt is designed for a surface mount application and specially designed for narrow door frames.

Features:

  • Door position status output.
  • Surface mount.

Technical Data:

  • Operating Voltage: 12 VDC.
  • Current Draw Pull in: 0.9 A/ 12 VDC, holding: 0.3A/12VDC (at 20 C).
  • Operating Temperature: -10 +45 C.
  • Humidity: 0~95 percent non-condensing.
  • Door status output: Reed rated 0.25 A/ 30 VDC, indicating door open or closed status.
  • Relock Time Delay: 0, 3 ,6 ,9 seconds.
  • Net Weight EB300: 1.1 Kg , EB300VGL: 1.7 Kg.
  • Tested over 500000 cycles.
