EB260

Product Details

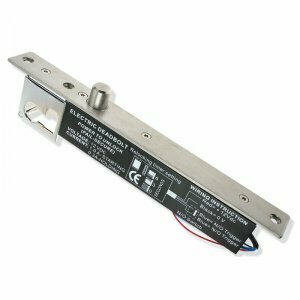

Electric flush dropbolt (solenoid) with key override - 12 V DC

The EB260 electric dropbolt incorporates a mechanical cylinder to lock or unlock the door manually in case of an unexpected power failure and is made for single action doors only. The door close sensor can detect within a range of 5 mm. If the door gap is too wide, a magnet within the strike plate can be adjusted to improve detection accuracy.

Features:

  • Flush installation
  • Energy saving design (After the dropbolt is completely locked, the current draw changes from 1.0A to 0.3A to prolong its life.)
  • Adjustable time lock delay (Door locking time delay lasts from 1.5 to 9 seconds adjustable by jumper PINs.)

Technical Data:

  • Fail-Secure Version (Power to Unlock)
  • Operating Voltage: 12~28 VDC
  • Voltage Tolerance: +- 10 percent
  • Current Draw: Pull in: 1.0A, Holding: 0.3A/12VDC (at 20 C)
  • Operating Temperature: -10~+45 C
  • Humidity: 0~95 percent non-condensing.
  • Tested over 500000 cycles.
  • Faceplate Material: Zinc alloy
  • Auto-relocking Time Delay : 1.5, 3 ,6 ,9 seconds
  • Net Weight: 1.3 Kg
