Flexi Standalone

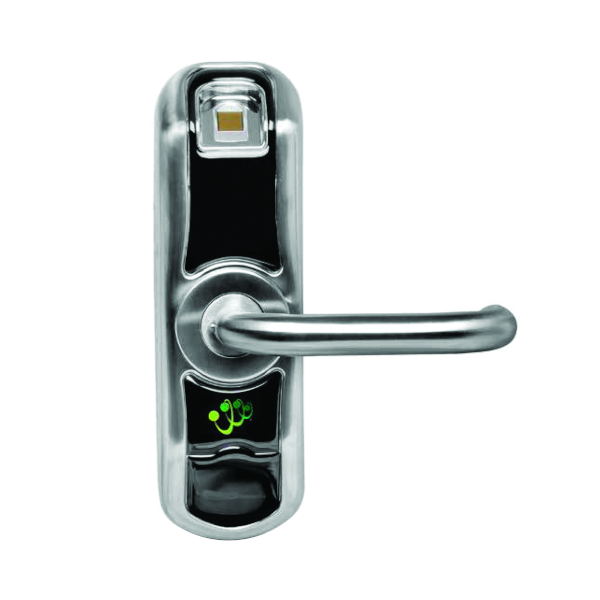

The Connective Touch Flexi is a standalone door locking solution using fingerprints to control access.

Once installed, 150 people can enrol on the unit. Upon sensing a finger placed in the sensor area, the unit “wakes” and enters the scanning and print matching stages.

LED’s surrounding the sensor and a small buzzer provide visual and audible notification of a failed or successful fingerprint match.

The patented ‘Smart’ spindle disengages the front spindle from the mortise, only engaging when a finger has been recognized. This eliminates the risk of “over-torque” attacks to the spindle.

Compatibility with most internal doors means the Connective Touch Flexi can be quickly installed to provide robust and reliable access control.

Specifications

• Dimensions (Without Handles) Rear/Secure Side: 232x70x35 mm
• Front/Safe side: 223x72x30 mm
• Finish colour: Satin Nickel Plate
• Mortise Deadlocking with Night Latch
• Cylinder-Handle centres distance: 72 mm
• Minimum back set: 60 mm
• Euro Profile Cylinder
• Standard door thickness <47mm: 40/10
• Standard door thickness >47mm: 45/10
• Note: For unusual thickness increase/decrease size by 5mm
• Levers / Handles
• Return sprung integral stops: Yes
• Horizontal position: Yes
• Vertical position: Yes
• 4xAA* (*Alkaline Duracell Recommended)
• Operating temperature: –20ºC / +85ºC
