BF456C/CC/W

Product Details

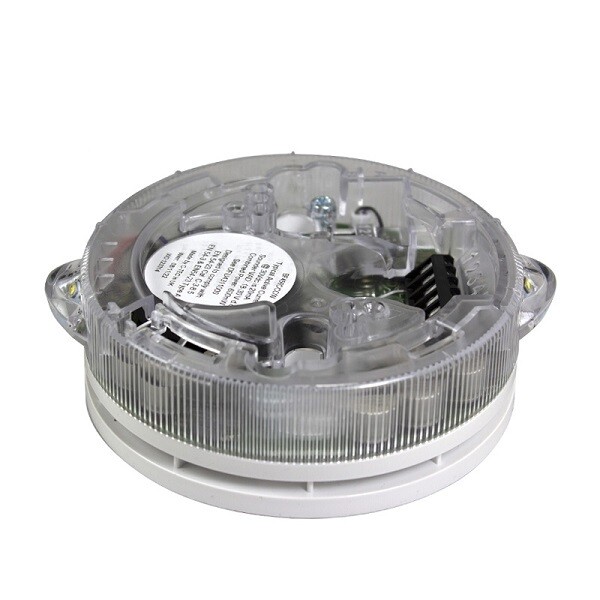

ActiV Conventional C-3-8.5 Base VAD c/w 96dB(A) Sounder

  • Third-party certified to EN54-3 (Sounders) and EN54-23 (VADs).
  • Provides 'C-3-8.5' light distribution (min 0.4 lux over a 3 x 8.5m cylindrical area).
  • Impressive 96dB(A) sound output @ 1m.
  • 31 selectable primary and secondary tone pairs and two volume levels (high and low)
  • Three selectable VAD flash rates (0.5Hz, 1Hz, OFF)
  • Alarm Current at 30Vdc = 12.2mA (0.5Hz) or 19.5mA (1Hz)
  • Alarm Current at 18Vdc = 14.5mA (0.5Hz) or 25mA (1Hz)
  • Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
  • Supplied with a BF431QCP quick connect plate and detector spur wires.
  • IP21C rated.
