Voice Speaker

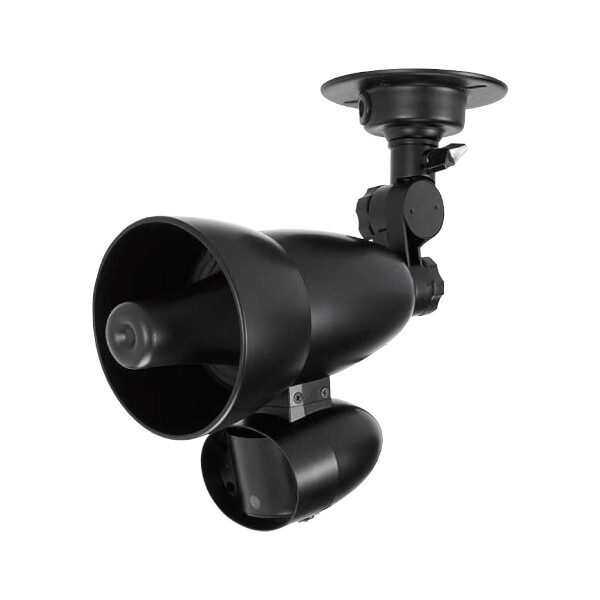

The AV-100E is a horn-type speaker with built-in microphone. A N/O input is required to trigger the playback of your recorded message.

Features

• Genuine Speech Synthesis Device (Requires external trigger)
• N/O input contact for Activation
• Easily record your own message (up to 8 seconds) using built-in Microphone
• Memory Back up for 20 days without power
• Horn Speaker Type 100dB/1m (max)
• Suitable for Indoor/Outdoor Use

Specifications

• Product type: Horn speaker
• Supply voltage: 12VDC (non-polarity)
• Current consumption:
  • 20mA or less in standby
  • 500mA or less at activation (max. volume)
• Alarm Input (to trigger):
  • Dry contact N/O
  • Contact capacity: 10mA or more
• Sound synthesis: ADM method
• Record method: Built in condenser microphone
• Record/Playback time: 8 seconds (Sound memory capacity: 256kb S-RAM)
• Memory backup: More than 20 days with non-electrified conditions (temp: 25°C, initial 30min charge required)
• Sound output motion: One-shot 8 sec. playback after detection (no re-trigger during playback)
• Sound power output: Max 2W over 100dB (1m ahead) at correct record level
• Volume adjustment: Continuously variable from 0 to max.
• Indication LED:
  • Record: Level indicator function
  • Playback: LED on during playback
• Ambient temperature range: -20°C to +50°C (-4°F to +122°F), no dew, no frost
• Installation: Indoor / Outdoor (rain proof)
• Weight: approx. 1kg
• Appearance: PC resin - Black
